Load Classifications
U-drain is designed and constructed to meet the requirements of the following Load Classifications:
CSA B79-08
EXTRA HEAVY DUTY
> 7,607 lbf
(Heavy Trucks)
This classification is intended for heavy-truck applications.
ASME 112.6.3
SPECIAL DUTY
>10,000 lb / 4,500 kg
(Airport)
Designed for the demanding environments like airports.
EN 1433
CLASS E
600 kN / 134,800 lb
(Dock/Airport Pavement)
U-drain is rated for general docks and airport pavements.
U-drain provides consistent performance in a wide variety of applications, including environments with heavy load demands such as commercial facilities and airports.
Cleaning & Maintenance
Cleaning and maintain your drain system plays an important part role in protecting its lifespan. Regular cleaning helps prevent build up that can restrict flow, cause blockages, and lead to unnecessary wear over time.
With U-drain, cleaning takes significantly less time and effort than traditional grated drains because there are no heavy grates to remove. The single-slot opening provides access for the cleaning paddle to push debris to the sump, while the flush nozzle attaches to a water source to flush the channel.

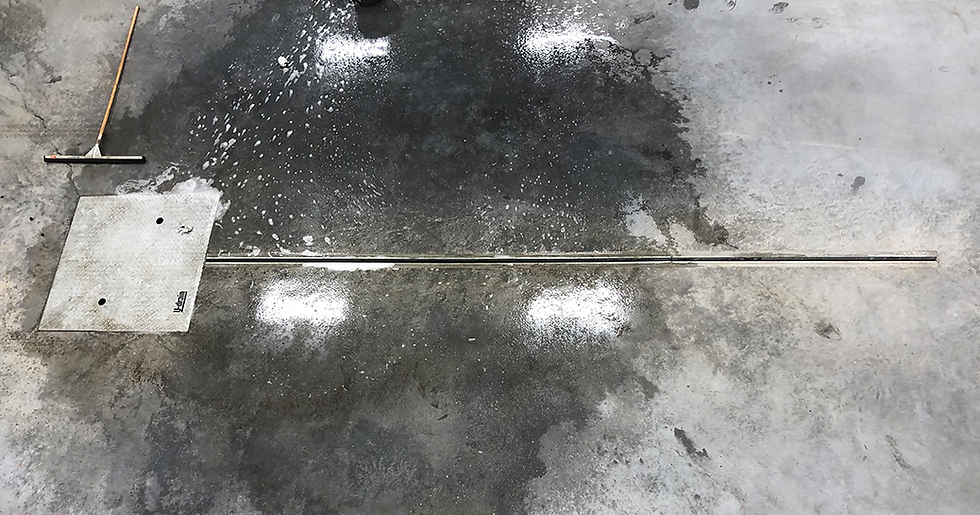

U-drain Cleaning Kit
Comes with our standard Cleaning Paddle with steel hanger and flashlight.
Cleaning Paddle
Insert into the slot opening of your drain system, twist 90° and push any debris from the drain channel into the sump. Common methods to remove sediment from the sump can involve using a shovel or shop vac.

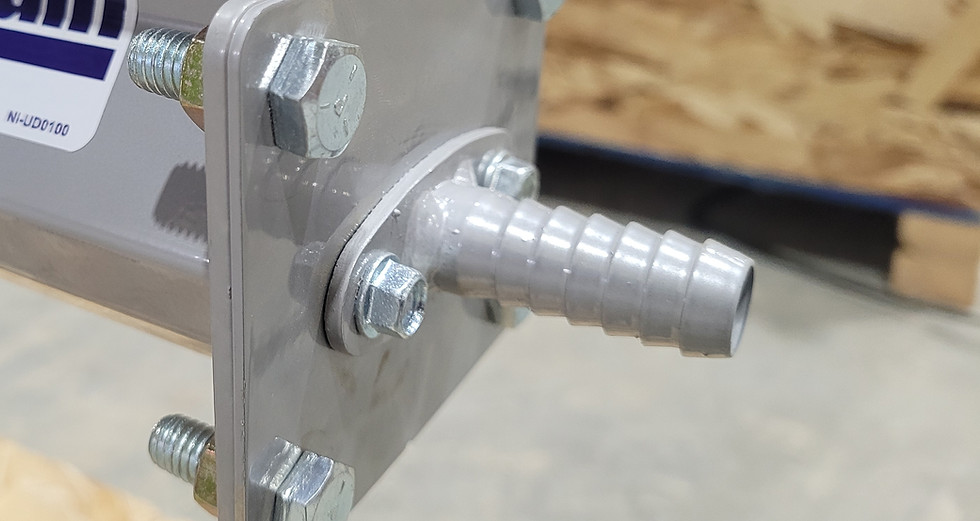

Flush Nozzle
Attached to the end cap of your system, which will connect to a water source to flush the channel of the system, pushing debris into the sump for easy removal.
